3.2V 20Ah A123 LiFePO4 Prismatic APP72161227 PHEV/EV/E-REV Battery Preform Tabs!

3.2V 20Ah A123 LiFePO4 Prismatic APP72161227 PHEV/EV/E-REV Battery Preform Tabs!

Describe

This battery and battery system is made of patented Nanophosphate material, which can be engineered to meet the strict requirements of a broad set of applications in our target markets.
This Prismatic APP72161227 PHEV/EV/E-REV are based on our Nanophosphate technology for application development in the transportation, electric grid services and consumer markets.

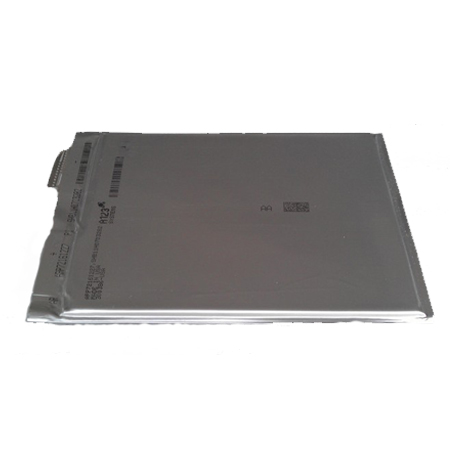

The APP72161277 (7.2 mm thick, 161 mm wide, 227 mm in height) is designed for high-power PHEV and EV applications. This 20Ah building block for PHEV and EV applications is currently in low-volume manufacturing. This prismatic cell is an Advanced high power, safe and long-life lithium-ion energy storage solution for next-generation applications and will be used in the Fisker Karma PHEV.

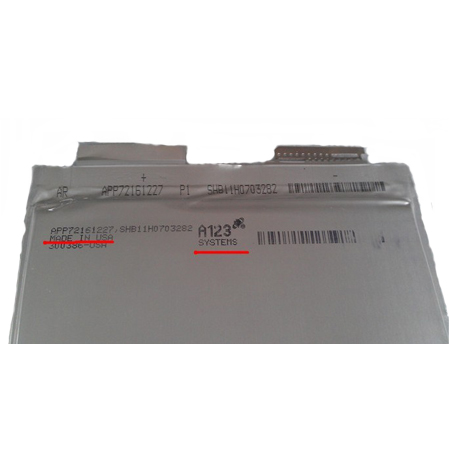

Made in USA or Made in Korea.
Two Tabs are pretreated for ready soldering and safety operating. The Tab of Positive is made of Aluminum, its size is 45mm x 11mm x .30mm, it need special soldering alloy and flux for Aluminum. The Tab of Negative is made of Copper coated Nickel, its size is 45mm x 11mm x .20mm, it has some small holes, also this cell would come with soldering link parts.
Applications
Primary Applications:
Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
Passenger and commercial battery electric vehicles (BEVs)
Electrical Motorcycle
Electrical Bike Bycile, Scooter

Nominal capacity: 20Ah
Nominal voltage: 3.3V
Dimension: 7x166x227mm
Continuous discharge rate: 5C 100A
Peak discharge rate: 20C 400A (10 seconds)
Application: Passenger and commercial plug-in hybrid electric vehicles
Weight: 480g
